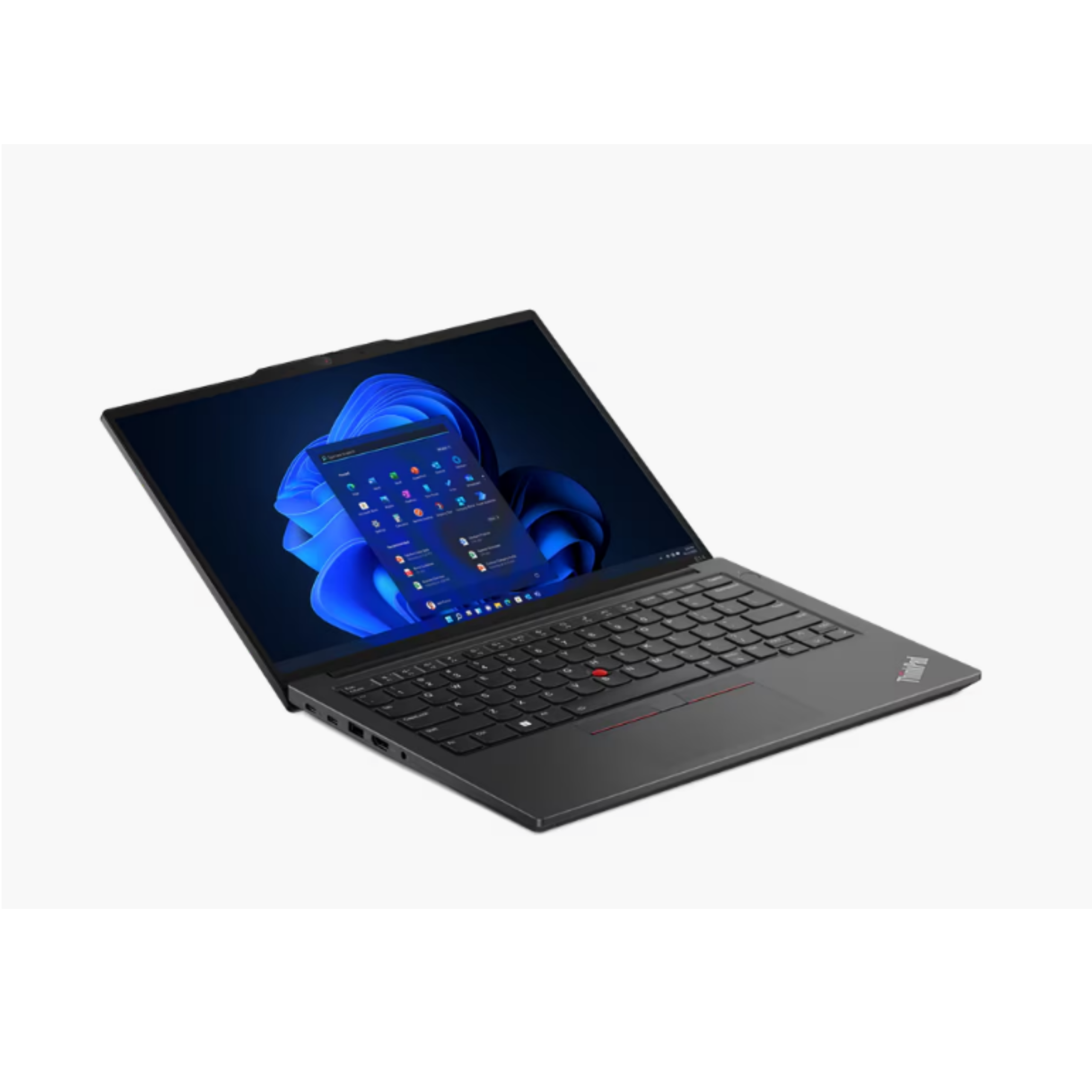

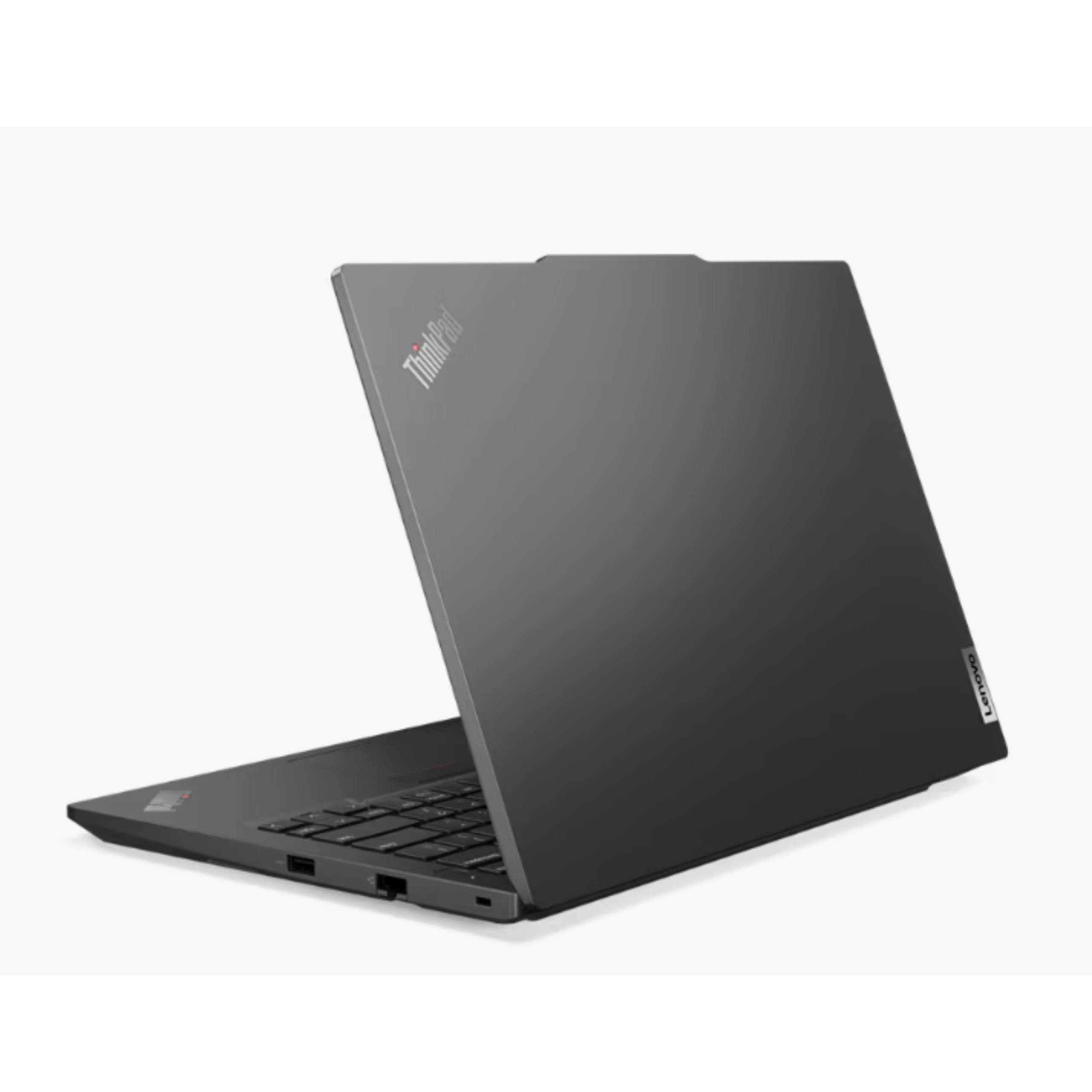

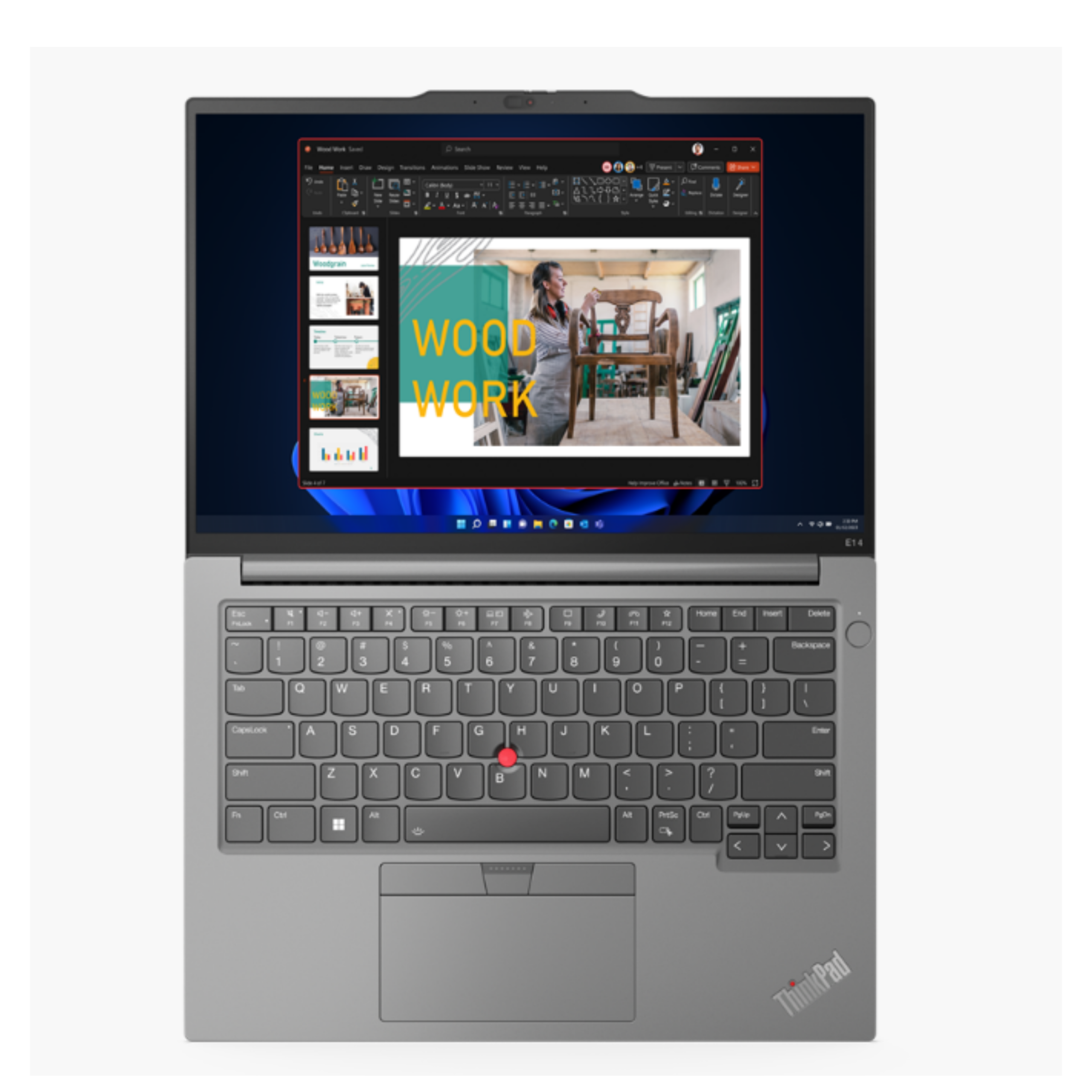

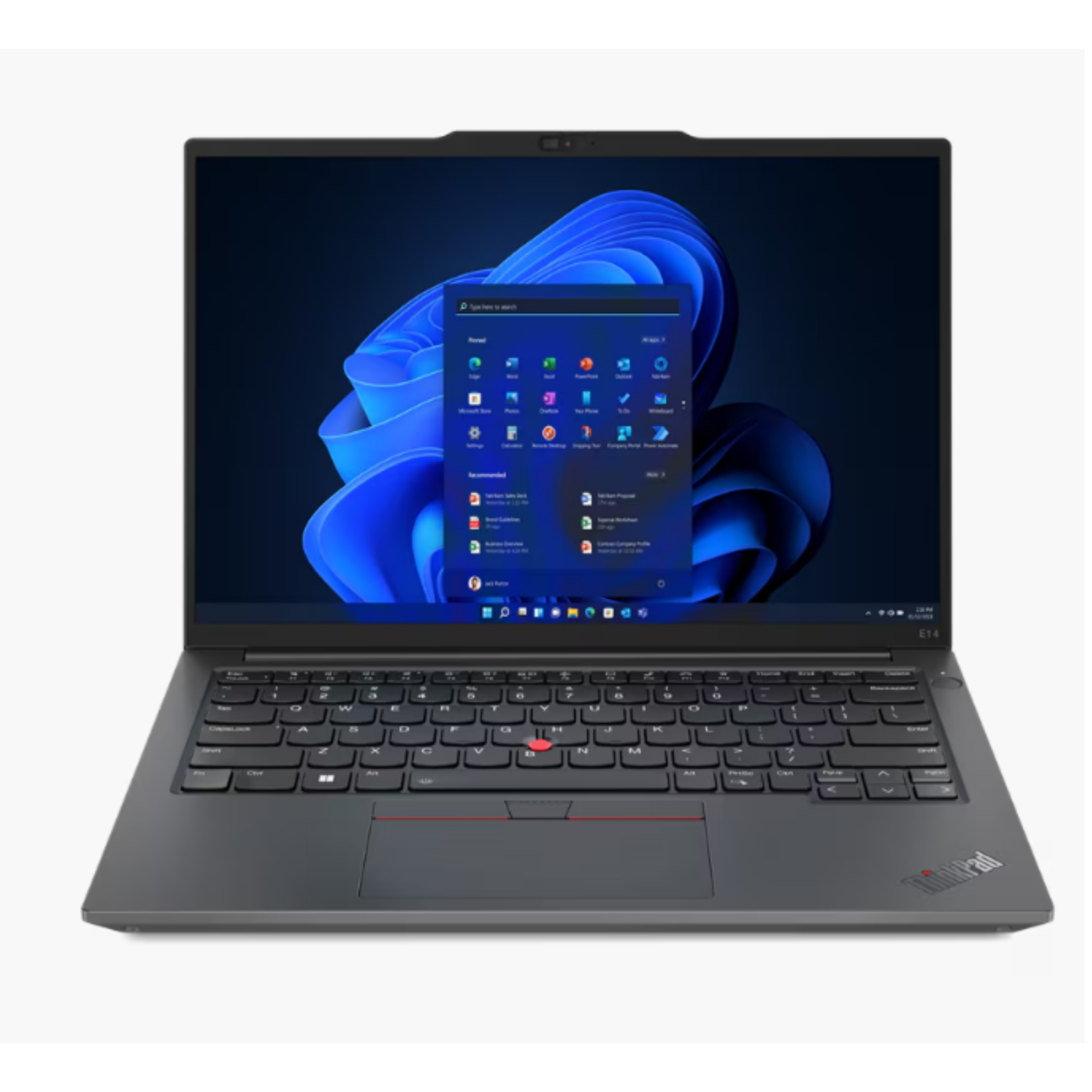

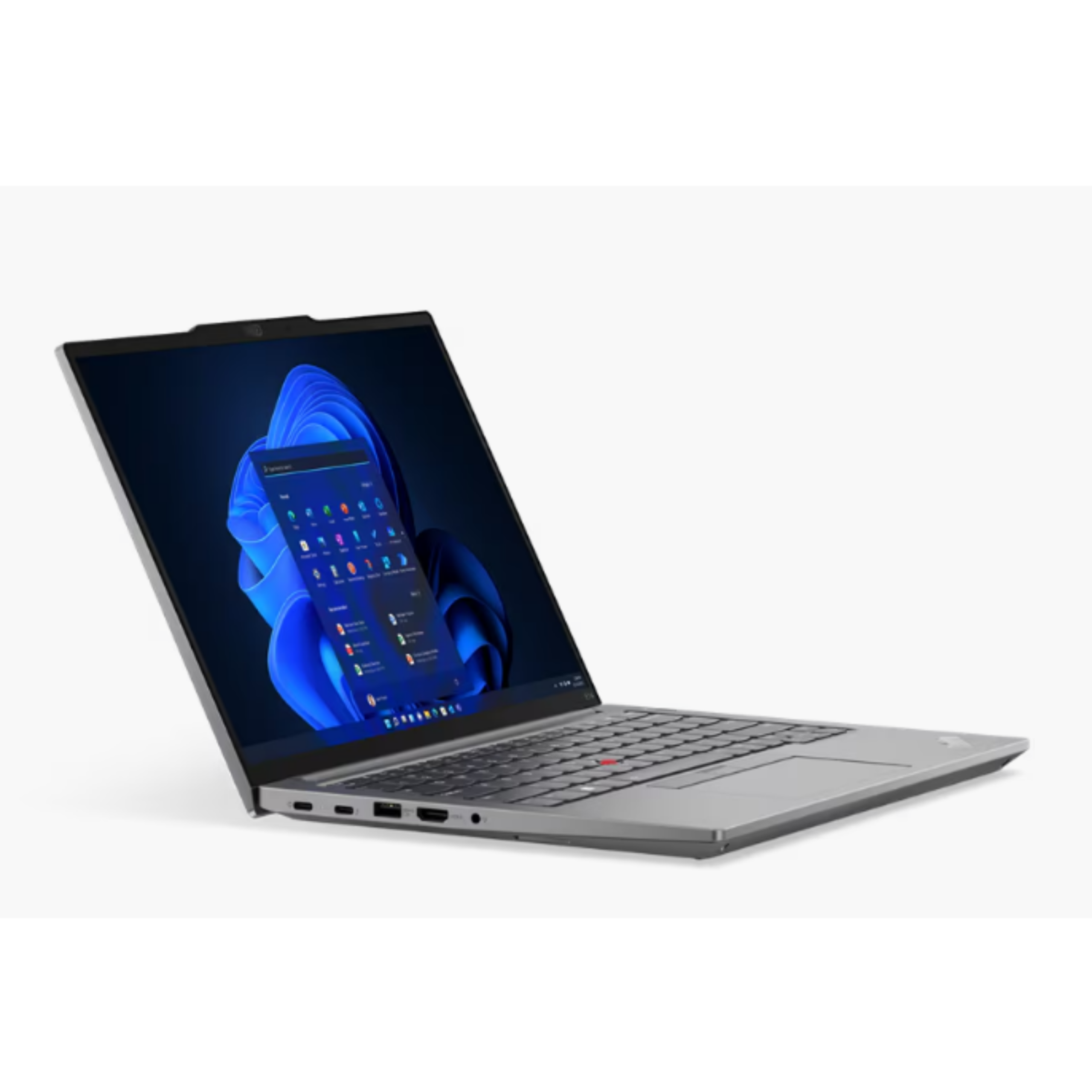

ThinkPad E14 Gen 5 (Intel 7)
PERFORMANCE
Processor: Intel® Core™ i7-1355U, 10C (2P + 8E) / 12T, P-core 1.7 / 5.0GHz, E-core 1.2 / 3.7GHz, 12MB
Graphics: NVIDIA® GeForce MX550 2GB GDDR6
Chipset: Intel® SoC Platform
Memory: 8GB Soldered DDR4-3200 + 8GB SO-DIMM DDR4-3200
Memory Slots: One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory: Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
Storage: 512GB SSD M.2 2242 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support: Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB
Storage Slot: Two M.2 slots • One M.2 2242 PCIe® 3.0 x4 slot • One M.2 2242 PCIe 4.0 x4 slot
Card Reader: No card reader
Optical: None
Audio Chip: High Definition (HD) Audio, Synaptic® CX11880 codec
Speakers: Stereo speakers, 2W x2, Dolby Atmos®
Camera: FHD 1080p with Privacy Shutter
Microphone: 2x, Array
Battery: Integrated 57Wh
Power Adapter: 65W USB-C® (3-pin)
DESIGN
Display: 14″ WUXGA (1920×1200) IPS 300nits Anti-glare, 45% NTSC
Touchscreen: None
Keyboard: Backlit, Arabic
Case Color: Graphite Black
Case Material: Aluminium (Top), Aluminium (Bottom)
Dimensions (WxDxH): 313 x 219.3 x 17.99 mm (12.32 x 8.63 x 0.71 inches)
Weight: Starting at 1.43 kg (3.15 lbs)
SOFTWARE
Operating System: None
Bundled Software: None
CONNECTIVITY
Ethernet: 100/1000M (RJ-45)
WLAN + Bluetooth: Wi-Fi® 6, 802.11ax 2×2 + BT5.1
WWAN: None
SIM Card: None
NFC: None
Standard Ports:
- 1x USB 2.0
- 1x USB 3.2 Gen 1 (Always On)
- 1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
Base Warranty: 1-year, Courier or Carry-in
Bundled Accessories: Topload Case
